Wellsaw Quality Metal Cutting Bandsaws

“Built Better to Work Stronger and Last Longer”

Wellsaw provides you with:
Outstanding quality
Famous dependability
Immediate support
A service team that knows and understands bandsawing and how to help.

Wellsaw manufactures a full line of high quality metal cutting bandsaws with features and construction that ensure accurate cutting, ease of operation and long service life.

Welcome to Wellsaw, Inc. where Quality Metal Cutting Bandsaws are made.

Wellsaw Portable / Convertible Saws

Wellsaw Model 57
  • Cuts 5″ x 7″ rectangles, 5″ round
  • 3.5″ x 3.25″ at 45 degrees
  • Change to vertical in seconds, with built-in work table
  • 150 lbs. net weight
  • Full size gearbox
  • 1/2 HP UL/CSA motor
  • Cast iron bandwheels
  • Made in U.S.A.
Wellsaw Model 58BD/58BW
  • 9-1/2″ x 11″ rectangles
  • 5-1/2″ x 5-1/2″ at degrees
  • Quickly converts to vertical sawing
  • Work Table included
  • Full size gearbox
  • 1/2 HP UL/CSA motor
  • Cast iron bandwheels
  • Made in U.S.A.

Wellsaw Standard Scissor Type Saws

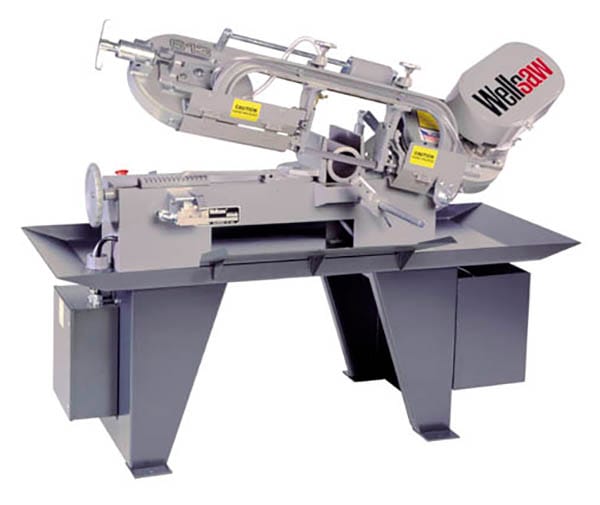

Wellsaw Model 613

Big saw power in a smaller saw footprint. Rugged Wellsaw quality. Designed for years of hard use. When you need the best not the biggest.

    • 650 lbs.
    • 7″ x 13″ capacityCuts rounds to 7″ or 6.5″ at 45 degrees
    • Four speed ‘V belt drive
    • 1 HP motor
    • 3/4″ blade
    • 8 gallon wet cutting system is standard

    Available Options Include: Casters, Worklight, Roller Conveyors.

Wellsaw Model 1016

Our most popular model. The standard in the industry since 1933. Now with more features and more flexibility. Powerful and robust. Provides fast and straight cuts for a lifetime.

    • 7″ x 13″ capacityCuts rounds to 7″ or 6.5″ at 45 degrees
    • Four speed ‘V belt drive
    • 1 HP motor
    • 3/4″ blade
    • 8 gallon wet cutting system is standard

    Available Options Include: Casters, Worklight, Roller Conveyors.

Wellsaw Model 1318

With large 13″ x 18″ capacity, powerful 3hp motor* and precision construction the model 1318 gives you superior performance in the most demanding operations.

    • Accurate feed control with variable hydraulic cylinder
    • Variable blade speed control
    • Flood coolant system
    • Powered blade brush
    • Also available with Semi-Automatic Operation

    Available Options Include: Worklight, Leveling/Vibration Mounts.

    *2 HP in when ordered in single phase.

Wellsaw Special Purpose Saws

Wellsaw Model 1316S Swivel Head Miter

Rugged and versatile miter sawing so that you can take on any job. Built to perform. Built to last.

    • True Swivel head from 0 degrees to 60 degrees
    • Large 13″ x 16″ Capacity and 11-1/2″ at 45 degrees
    • Hydraulic feed control
    • Flood coolant system, worklight, and 5 ft. infeed conveyor are all standard
    • Variable Bandspeed
    • Also availabe in Semi or Full Automatic configurations

    Available Options Include: Leveling/Vibration Mounts, Flush hose kit.

Wellsaw Model 1338

Oversize capacity for oversized jobs. Cuts 38″ widths. Ideal for cutting gratings, sheet metal fabrications other medium density shapes which demand extra capacity.

    • Accurate feed control with variable hydraulic downfeed
    • 3 HP motor* with variable blade speed control
    • 1 inch x 15ft 6in blade
    • Premium carbide guides with back up rollers
    • Flood coolant system
    • Powered blade brush

    Available Options Include: Roller conveyors, Worklight, Leveling/Vibration Mounts.

    * 2 HP in when ordered single phase.

Wellsaw Miter Head Saws

Model 1316S Swivel Head Miter

Rugged and versatile miter sawing so that you can take on any job. Built to perform. Built to last.

    • True Swivel head from 0 degrees to 60 degrees
    • Large 13″ x 16″ Capacity and 11-1/2″ at 45 degrees
    • Hydraulic feed control
    • Flood coolant system, worklight, and 5 ft. infeed conveyor are all standard
    • Variable Bandspeed
    • Also availabe in Semi or Full Automatic configurations

    Available Options Include: Leveling/Vibration Mounts, Flush hose kit.

Wellsaw Model 1316S-EXT Miter Head Bandsaw with Extended Capacity

Rugged and versatile miter sawing to take on any job. Extra capacity for oversized light duty applications. Built to perform. Built to last.

    • True Swivel Head from 0 to 60 degrees
    • Large 13″ x 18″ Capacity at 90 and 45 degrees, and 13″ x 14.5″ at 60 degrees
    • 1″ x 15′-6″ blade
    • Hydraulic feed control
    • Flood coolant system, work light, and 5ft. infeed conveyor are all standard
    • Variable Bandspeed
    • Also available in Semi or Full Automatic configurations

    Available Options Include: Leveling/Vibration Mounts, Flush Hose Kit

Wellsaw 1316S-SA Semi-Automatic Swivel Head
Provides the strength and precision of our popular swivel head saw with the convenience of true semi-automatic operation. Factory programmed PLC manages the saw head and bed vise improving both safety and productivity.
    • True Swivel head. Cuts from 0° to 60°
    • Large 13″ x 16″ Capacity  and 11-1/2″ at 45°
    • Hydraulic feed control
    • Flood coolant system, worklight and 5 ft. infeed conveyor are all standard
    • Variable Bandspeed
    • Full cycle, automatic control of the saw frame and vise jaw
    • Full function control panel for manual control of all functions
    • Positive feed control for increased performance on oversized pieces
    • Also available in Extended Head or Fully Automatic configurations

    Available Options include: Leveling/Vibration Mounts, Flush Hose Kit, 5 ft. or 10 ft. Roller Conveyors or 4 ft. Discharge Table

    * 2 HP in when ordered single phase.

Wellsaw Semi Automatic Saws

1316S-SA Semi-Automatic Swivel Head

Provides the strength and precision of our popular swivel head saw with the convenience of true semi-automatic operation. Factory programmed PLC manages the saw head and bed vise improving both safety and productivity.

    • True Swivel head. Cuts from 0° to 60°
    • Large 13″ x 16″ Capacity  and 11-1/2″ at 45°
    • Hydraulic feed control
    • Flood coolant system, worklight and 5 ft. infeed conveyor are all standard
    • Variable Bandspeed
    • Full cycle, automatic control of the saw frame and vise jaw
    • Full function control panel for manual control of all functions
    • Positive feed control for increased performance on oversized pieces
    • Also available in Extended Head or Fully Automatic configurations

    Available Options include: Leveling/Vibration Mounts, Flush Hose Kit,
    5 ft. or 10 ft. Roller Conveyors or 4 ft. Discharge Table

Wellsaw Model 1318-SA Semi-Automatic

We added the efficiency of a PLC controller to the strength and precision of our popular model 1318. The model 1318-SA Semi-Auto eliminates the time consuming operations of a manual saw so that you get more safety, fewer mistakes, and increased output.

The model 1318-SA offers all the features of our model 1318 plus:

    • Full cycle, automatic control of the saw frame and vise jaw
    • Full function control panel for manual control of all functions
    • Positive feed control for increase performance on oversized pieces

    Available Options Include: 5 ft. or 10 ft. roller conveyors or 4 ft.  discharge table.

Wellsaw Vertical Saws

Wellsaw Model V-20

Dependable vertical sawing with extra capacity. For tool room, foundry work, and contour sawing. Your best choice.

    • 20″ throat with 16″ under the guide
    • Innovative final drive for long life
    • Oil bath two speed gearbox
    • All powder coated sheetmetal

    Available Options Include: blade welder, grinder and shear, mist coolant, rip fence and miter guide.

Wellsaw Model V-20-24

Dependable vertical sawing with extra capacity. For tool room, foundry work, and contour sawing. Your best choice.

    • 20″ throat with 24″ under the guide
    • Innovative final drive for long life
    • Oil bath two speed gearbox
    • All powder coated sheetmetal

    Available Options Include: blade welder, grinder and shear, mist coolant, rip fence and miter guide.

Wellsaw Twin Column Saws

For Twin Column Saws, please visit www.wfwells.com or click on the logo below
