HYDMECH Vertical Tilt Frame Band Saws, New Machinery

HYDMECH Vertical Tilt Frame Band Saws

Semi-Automatic Vertical Band Saw,
Automatic Vertical Band Saw

The V-Series saws are built to last and deliver non-stop performances. These are heavy-duty, high-performance vertical tilt frame saws that have the flexibility for cutting two-way miters. The V Series is available in semi-automatic and automatic modes of operation with cutting capacities up to 30″ and bar feeds from 40” to 120”.

HYDMECH features the following vertical tilt frame band saws:

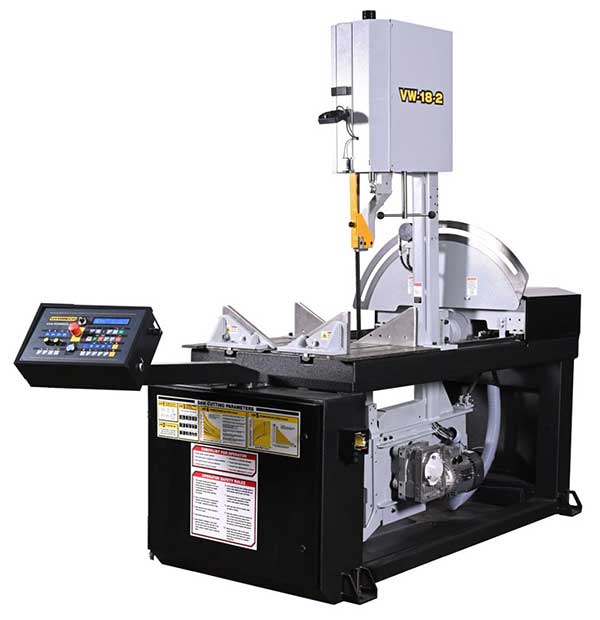

HYDMECH VW-18 — Semi-Automatic Vertical Band Saw, New Machinery

HYDMECH VW-18 — Semi-Automatic Vertical Band Saw

The VW-18 II is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

This model is one of a kind in the HYDMECH line up with its saw head that can cut at 90° and be adjusted to cut at a 3° head cant.

Now available with optional powered head tilt and digital angle display.

Featuring a 22″H x 18″W capacity, 5 HP motor, and 1 1/4″ blade, the VW18 II is a reliable choice for all your light to medium-duty, vertical metal cutting applications.

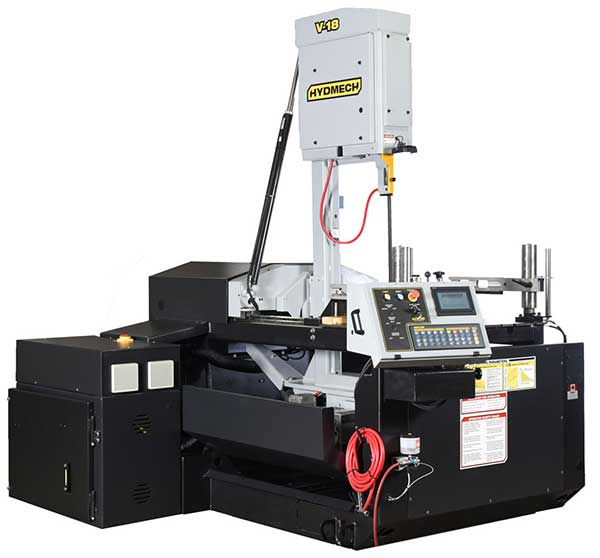

HYDMECH V-18 — Semi-Automatic Vertical Band Saw, New Machinery

HYDMECH V-18 — Semi-Automatic Vertical Band Saw

The V-18 is a manual vertical band saw with the ability to miter from 45° left to 45° right.A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head advance/retract, blade tension, and guide arm movement.
Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

Featuring a 18″W x 31″H capacity, 7.5 HP motor, and 1 1/4″ blade, the V-18 is a reliable choice for all your vertical metal cutting applications.

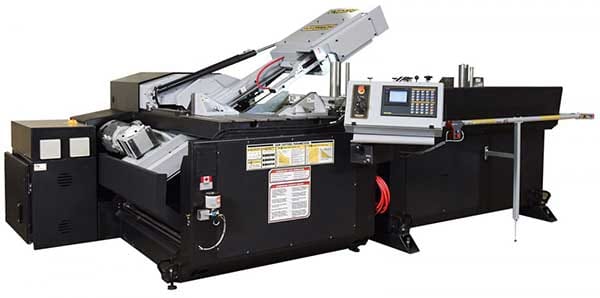

HYDMECH V-18APC-60 Band Saw, New Machinery

HYDMECH V-18APC-60 Band Saw

The V-18APC-60 is an automatic vertical band saw with the ability to miter from 60° left to 60° right.

The V-18APC is fast, with its high speed shuttle feed indexing up to 40″ in a single movement. A 2 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head swing, head advance/retract, blade tension, guide arm, and shuttle movement. Its PLC control features storage of up to 99 jobs with the ability to run 5 in queue.

Featuring a 18″W x 22″H capacity, 7.5 HP motor, and 1 1/4″ blade, the V-18APC is a reliable choice for all your vertical metal cutting applications.

HYDMECH V-20 Band Saw, New Machinery

HYDMECH V-20 Band Saw

The V-20 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

Its standard 4-degree forward approach angle provides increased efficiency in cutting of structural materials. Conveniently located on an articulating console on the front of the machine. The NEW WINDOWS 5.0 Touch Screen NC controller operates the Semi-Automatic cycle and allows for Manual operation as well.  A wide variety of languages can be chosen for message screen display.

The double miter angle operation has an angle “Go To” function, which allows the operator to enter 2 desired angles up to 60 degrees and have the machine

Featuring a 25″H x 20″W capacity, 10 HP VFD motor, and 1 1/2″ blade, the V-20 is a reliable choice for all your vertical metal cutting applications.

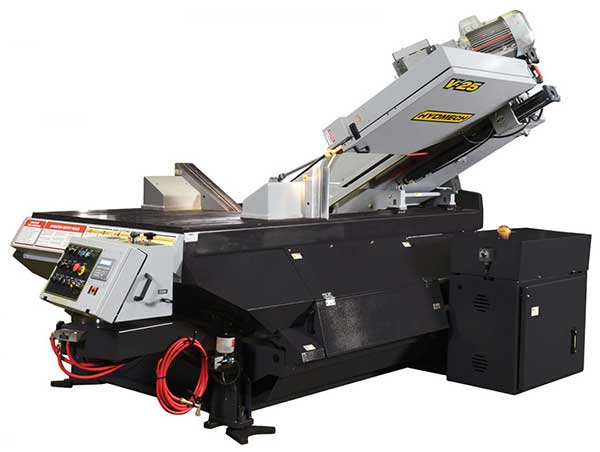

HYDMECH V-25 — Semi-Automatic Vertical Band Saw, New Machinery

HYDMECH V-25 — Semi-Automatic Vertical Band Saw

The V-25 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

A 3 HP driven hydraulic pump supplies system pressure through both a two and three position directional valves controlling all vises, head swing, head advance/retract, blade tension, and guide arm movement.

Its standard 6° degree canted head allows for more efficient cutting and improved blade life.

Featuring a 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25 is a reliable choice for all your vertical metal cutting applications.

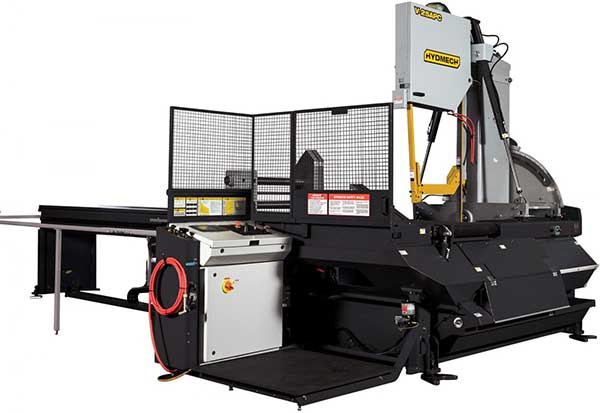

HYDMECH V-25APC — Automatic Vertical Band Saw, New Machinery

HYDMECH V-25APC — Automatic Vertical Band Saw

The V-25APC is an automatic vertical band saw with the ability to miter from 60° left to 60° right.

The V-25APC is fast, with its high speed shuttle feed indexing up to 60″ (120″ optional) in a single movement. A 3 HP driven hydraulic pump supplies system pressure through both a two and three position directional valves controlling all vises, head swing, head advance/retract, blade tension, and guide arm movement. Its PLC control features storage of up to 1000 jobs with the ability to run 20 in queue.

Featuring a 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25APC is a reliable choice for all your vertical metal cutting applications.

Contact Advanced Machinery Companies for Additional Information
