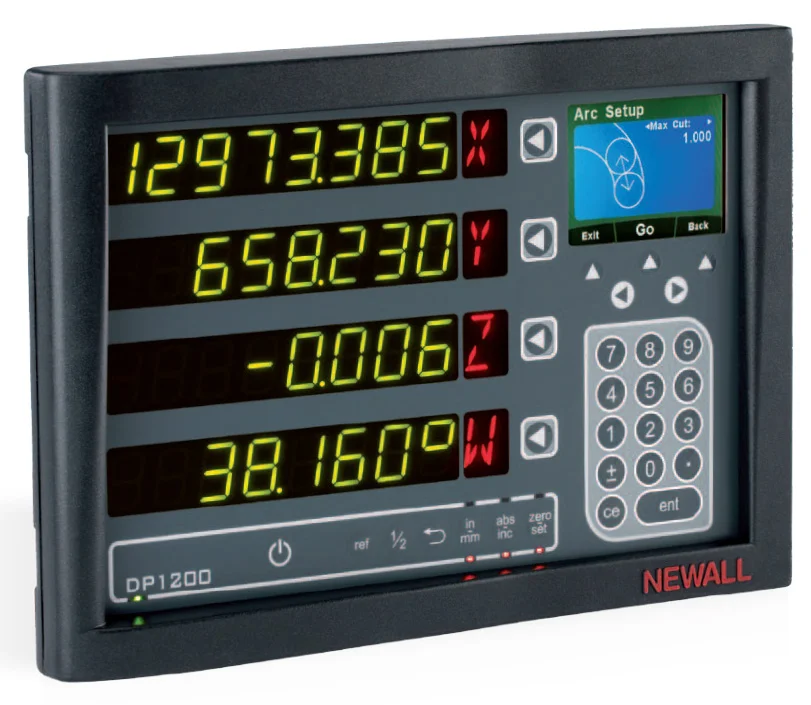

DP1200 DIGITAL READOUT

A new dimension of ultimate performance

THE IDEAL DRO SOLUTION FOR LARGE MACHINE TO OLS
Engineered specifically for long travel machine tools, the DP1200 DRO offers features that are essential for increasing productivity of boring mills, planer mills, VTLs, milling machines and long travel lathes. Built with the operator in mind, the DP1200 includes large, clear numerical displays with a high resolution, 3.5“ TFT screen. With an intuitive user interface and an optional DSU, the DP1200 is the ideal solution for either retrofit or OEM.

ADVANCED TECHNICAL FEATURES INCLUDE:
• Available in 2, 3, or 4 axes (including angular/rotary)
• Real-time tool path graphics with auto-zoom
• Ultra-wide viewing angle
• Arc Contouring: Calculates points along an arc for rough machining
• Polar Co-ordinate Readings: Display radial and angular coordinates
• Line Hole Routine: Calculates points along a line at equal distance
• Programmable Memory/Teach: Store dimensional data into memory while machining the first part
• Tool Offsets: Retain all dimensional data even after tool change
• Feed-Rate Display: Longer tool life and incr eased cutting tool performance
• Linear and Segmented Error Compensation: Applies a compensation factor for machine geometric and abbey errors

DP700 DIGITAL READOUT

A powerfull and intuitive DRO

FOR ALL TYPES OF METAL CUTTING APPICATIONS
The DP700 is a powerful and intuitive DRO that is housed in a rugged cast aluminum chassis with a wipe clean front panel. The innovative design allows the operator to easily configure the DRO for general machining, milling or turning specific features.

ADVANCED TECHNICAL FEATURES INCLUDE:
• Bolt Hole Circle Routine: Enter parameters via question and answer message prompts
• Arc Contouring: Calculates points along an arc for rough machining
• Polar Co-ordinate Readings: Display radial and angular coordinate
• Line Hole Routine: Calculates points along a line at equal distance
• Programmable Memory/Teach: Store dimensional data into memory while machining the first part
• Tool Offsets: Retain all dimensional data even after tool change
• Axis Summing: Sums two axes within the same plane
• Feed-Rate Display: Longer tool life and increased cutting tool performance
• Linear and Segmented Error Compensation: Applies a compensation factor for machine geometric and abbey errors
• RS-232 Output: Allows for data output

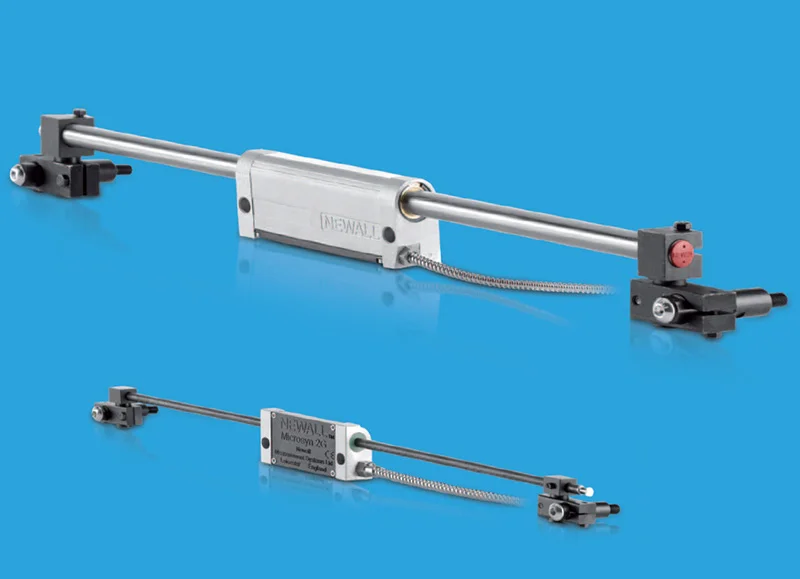

SPHEROSYN 2G / MICROSYN 2G

Consistent accuracy and reliability even under the harshest environmental conditions

Designed to work exclusively with Newall’s Digital Readouts, the Spherosyn 2G and Microsyn 2G encoders embody a truly innovative design in which all of the electronics and measuring components are sealed and protected. Unlike other encoder technologies, Newall encoders carry an IP67 environmental rating and will continue to provide accurate, reliable readings even when fully submersed in water, oil or coolant. No other linear encoder matches the durability and reliability of Newall.

SPHEROSYN 2G
Travel length: Up to 13.5 metres
Accuracy: +/-10μm per any one metre of travel
Resolution: 10μm or 5μm (0.0005” or 0.0002”)
Repeatability: Within one resolution count

MICROSYN 2G
Travel length: Up to 1 metre
Accuracy: +/-5μm or +/-10μm
Resolution: 10μm, 5μm, 2μm or 1μm (0.0005”, 0.0002”, 0.0001” or 0.00005”)
Repeatability: Within one resolution count

DSG AND DMG ENCODERS

Positional feedback for non-servo applications

Newall’s DSG and DMG linear encoders were specifically engineered to be used with competitive brands of DRO displays. The design of the DSG and DMG encoders is based on Newall’s Spherosyn 2G and Microsyn 2G encoder technology that carries an IP67 environmental rating and is recognized throughout the world for quality, accuracy and reliability.

COMPATIBLE WITH MOST BRANDS OF DRO DISPLAYS:
• Acu-Rite
• SWI/Trak
• Anilam/RSF
• Fagor
• Heidenhain
• Mitutoyo
• And Others

All the above brands and trademarks are the property of their respective owners.

LINEAR FEEBACK ENCODERS

Positional feedback for CNC and other servo driven applications

CNC machine tool builders, retro-fitters and system integrators can take advantage of Newall’s inductive encoder technology. The SHG, MHG and HLG line of linear encoders provide a wide range of industrial output protocols. Newall’s inductive encoders offer performance and reliability benefits not found in other linear encoders.
