HYDMECH Horizontal Band Saws, New Machinery

HYDMECH Horizontal Band Saws

Big, exceptional straight cuts found right here! Designed for multi-shift, high-production environments, HYDMECH H-Series saws are horizontal, guillotine saws that deliver big straight cuts – up to 80” – fast. The H-Series is available in semi-automatic and fully-automatic modes of operation with cutting capacities up to 80”

The H-Series saws are tough machines, designed to handle the demands of fabricators, steel service centres, machine shops, forging and die shops, and metal service centres. H-Series cuts solids, tubing, channels, angles, aircraft grade materials, as well as non-ferrous, stainless, and Hi-Temp alloys. This series is ideal for completing multiple slugging of parts, rounds, squares and structural material.

HYDMECH features the following H series, horizontal band saws in our product line-up:
HYDMECH H-230A – Automatic Horizontal Band Saw, New Machinery

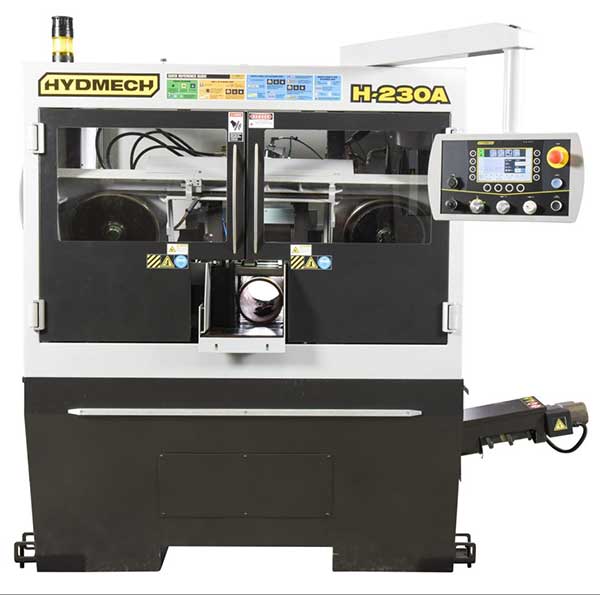

HYDMECH H-230A – Automatic Horizontal Band Saw

The H-230A is has the smallest footprint of HYDMECH’s automatic horizontal band saws. It’s split front vise for material clamping results in less burr on cut pieces.

The machines controller can be easily programmed, storing up to 10 different cutting jobs with 5 in queue and features several different cutting modes.Equipped with a shuttle feed, its shuttle vise assembly is capable of high speed material indexing up to 19” in a single stroke. Driven by a stepper motor controlled by a ball screw assembly, the H-230A provides quick, accurate cuts.

Featuring a 9″H x 9″W capacity, 3 HP motor, and 1″ blade, the H-230A is a reliable choice for your horizontal cutting applications.

HYDMECH H-11A – Automatic Horizontal Band Saw, New Machinery

HYDMECH H-11A – Automatic Horizontal Band Saw

The brand new H-11A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications. A Windows based touch screen NC controller stores up to 99 jobs with 5 in queue. It operates both manual and automatic cycles with the display available in a variety of languages.
A heavy duty shuttle vise powered by a ball screw and stepper motor provides material indexing up to 19” in a single stroke with multi-index capability. Its standard split front vise delivers a short material remnant length of 1.5″, reducing material waste. A Cast iron guide arm mechanically connected to front vise movable jaw provides proper guide arm to material spacing at all times.

Featuring a 11″ x 13″ capacity, 6 HP VFD motor, and 1 1/4″ blade, the H-11A is a reliable choice for your horizontal metal cutting applications.

HYDMECH H-14A – Automatic Horizontal Band Saw, New Machinery

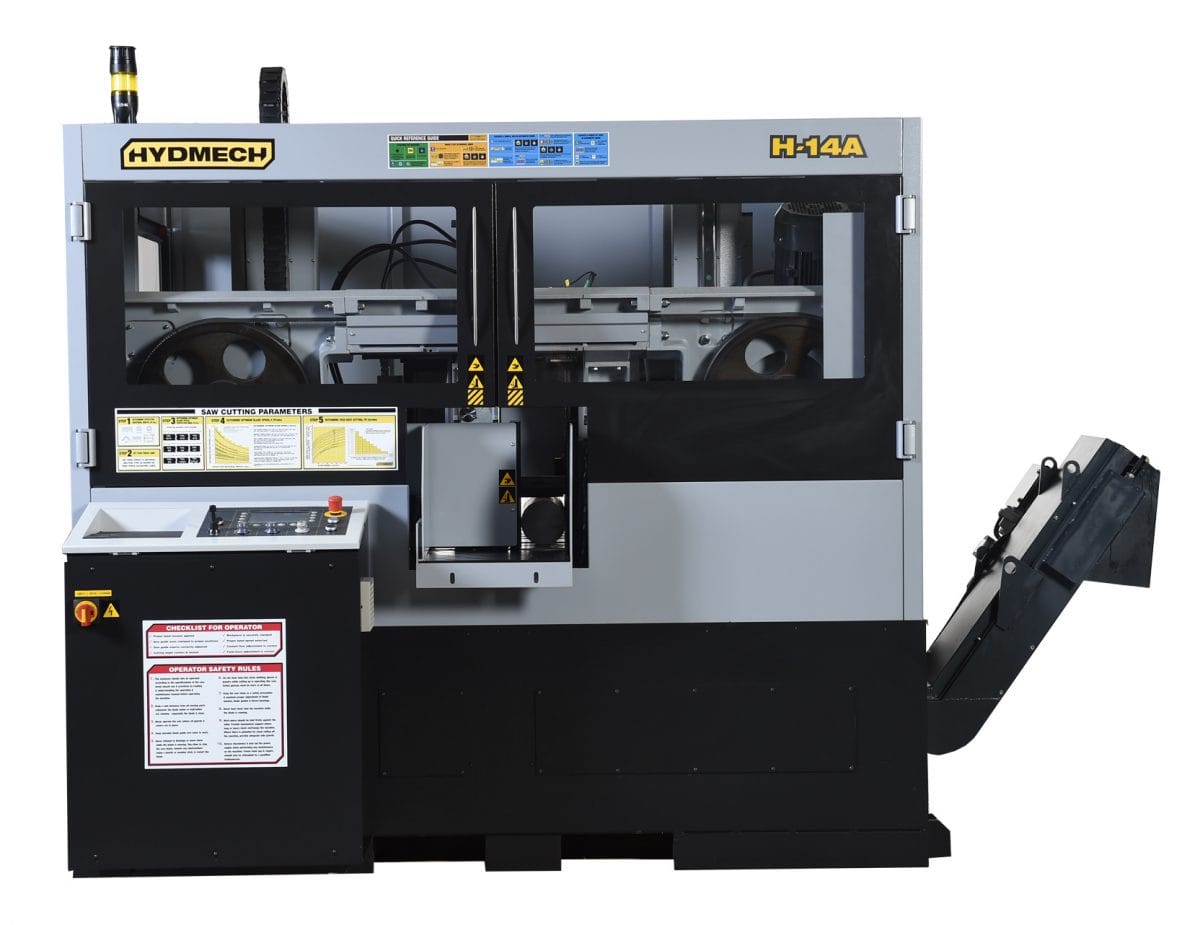

HYDMECH H-14A – Automatic Horizontal Band Saw

HYDMECH has done it again! You’ll be impressed by the completely redesigned HYDMECH H-14A band saw featuring a rigid cast head, column, and base which reduces vibrations and provides the lowest decibel sound in the sawing industry.

Designed for high production cutting with a carbide tipped blade, the H-14A is unlike anything on the market. With an enclosed design for superior safety, this machine uses 66% less energy than competing models due to on-demand hydraulics which only operate when needed. Its 25 mm remnant length option reduce material waste saving you money!

Featuring a powerful 8.8 HP variable frequency drive motor, the H-14A has a heavy-duty shuttle vise powered by a ball screw and vector motor. This provides material indexing up to 19” in a single stroke with multi-indexing capability. Save money with its split front vise, where the material is clamped on both sides of the saw blade. This reduces the breakaway burr and improves the surface finish of the cut. A cast iron guide arm mechanically connected to the front vise movable jaw provides proper guide arm spacing to fit the material being cut.

A touch screen controller operates the automatic cycle and allows for manual operation.

With a 1 ¼” blade and 14” x 14” capacity, the new H-14A is the ideal band saw for all your straight cuts.

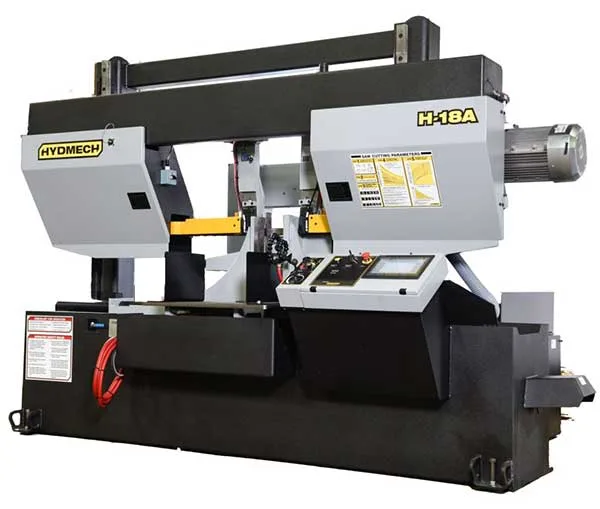

HYDMECH H-18A – Automatic Horizontal Band Saw, New Machinery

HYDMECH H-18A – Automatic Horizontal Band Saw

The H-18A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications.

The H-18A cuts fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its standard split front vise delivers a short material remnant length, reducing material waste.

Featuring an 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A is a reliable choice for all your horizontal metal cutting applications.

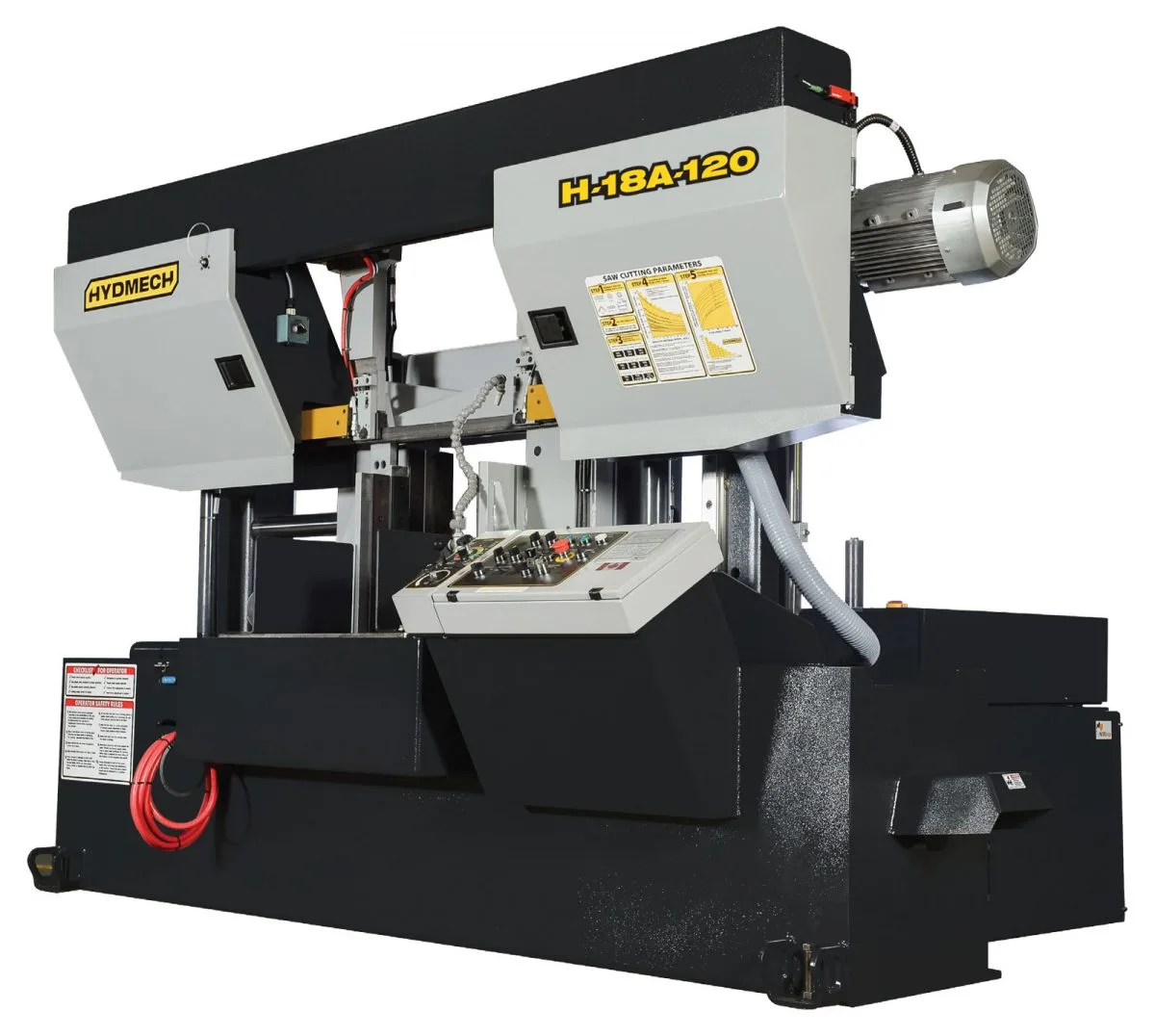

HYDMECH H-18A-120 – Automatic Long Bar Feed Horizontal Band Saw, New Machinery

HYDMECH H-18A-120 – Automatic Long Bar Feed Horizontal Band Saw

The H-18A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for medium to heavy-duty applications.

The H-18A-120 cuts fast, with its high speed shuttle feed indexing up to 120″ in a single movement. Its standard split front vise delivers a short material remnant length, reducing material waste.

Featuring an 120″ bar feed, 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A-120 is a reliable choice for all your horizontal metal cutting applications.

HYDMECH H-22A – Automatic Horizontal Band Saw, New Machinery

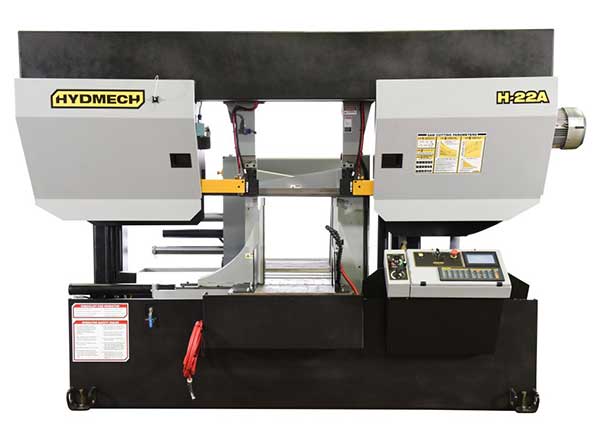

HYDMECH H-22A – Automatic Horizontal Band Saw

The H-22A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-22A is fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

Featuring a 22″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

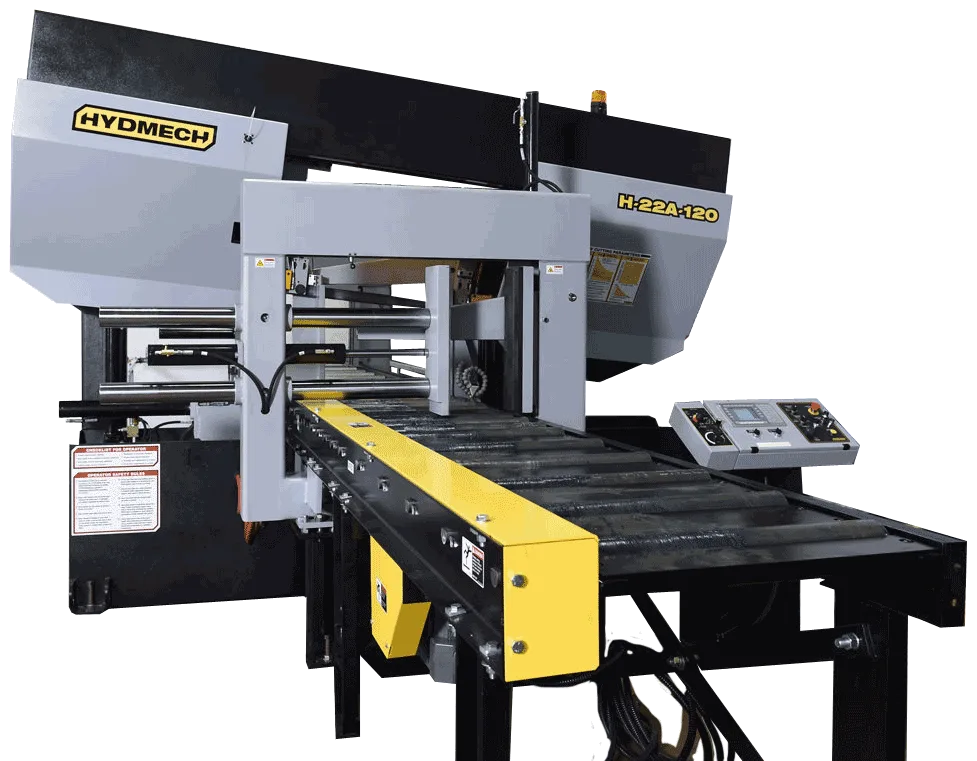

HYDMECH H-22A-120 – Automatic Long Bar Feed Horizontal Band Saw, New Machinery

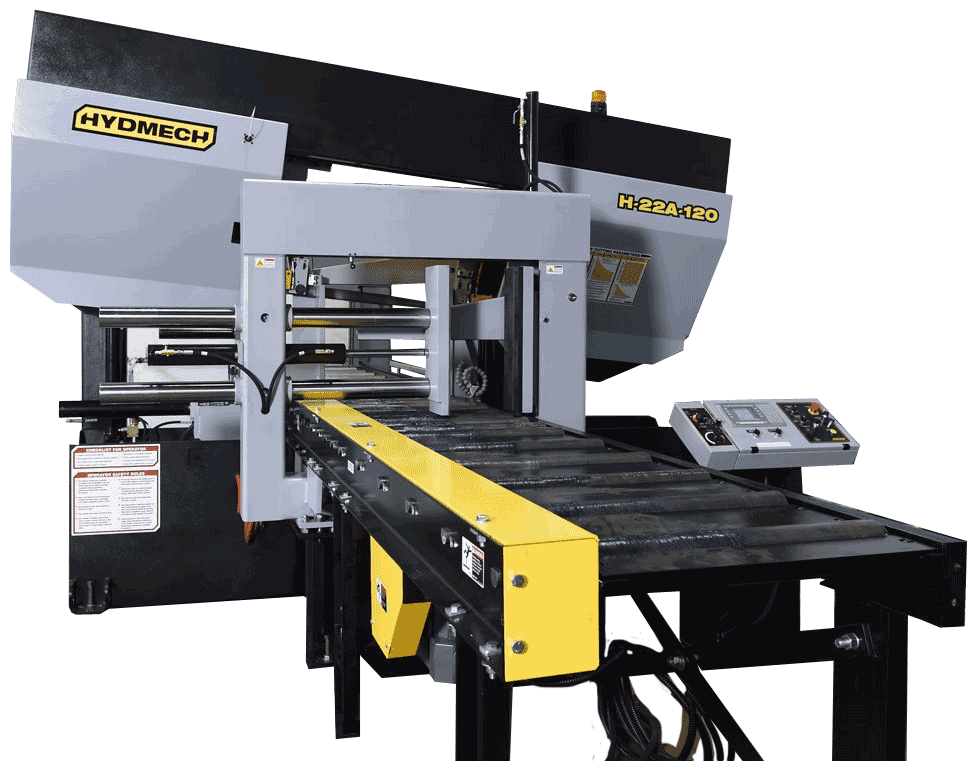

HYDMECH H-22A-120 – Automatic Long Bar Feed Horizontal Band Saw

The H-22A-120 is a heavy-duty, automatic, horizontal long bar feed band saw designed to provide exceptional cutting performance in multi-shift, high production environments. This highly versatile guillotine style machine can be utilized for a wide variety of material applications, ranging from mild steels and aluminum’s to stainless, tool steels and more exotic high temperature alloys. No matter what the application it can provide cut quality that is second to none.

The machine’s PLC 100 controller can be easily programmed for up to 99 different jobs. The easy programming of the E 300 interface, and the user-friendly manual control switches make for minimum job setup time and cost effective operation. The full capacity hydraulic overhead bundling clamps provide for efficient high production cutting of various material bundles.

The H-22A-120 is fast, with its high speed shuttle feed indexing up to 120″ in a single movement. Its standard 6° degree canted head allows for more efficient cutting and improved blade life.

Featuring a 20″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

HYDMECH H-28A – Automatic Horizontal Band Saw, New Machinery

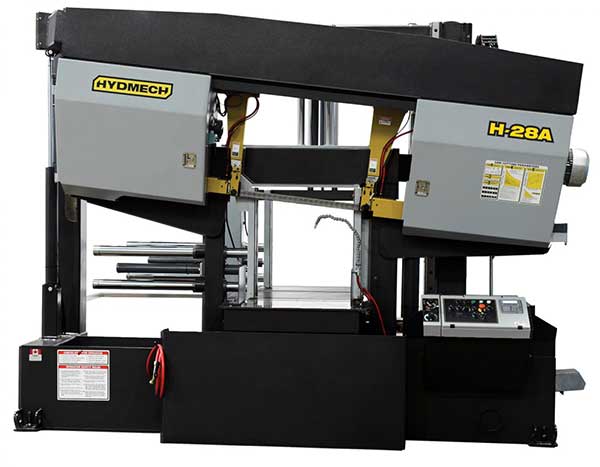

HYDMECH H-28A – Automatic Horizontal Band Saw

The H-28A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-28A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

Hyd-Mechs direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

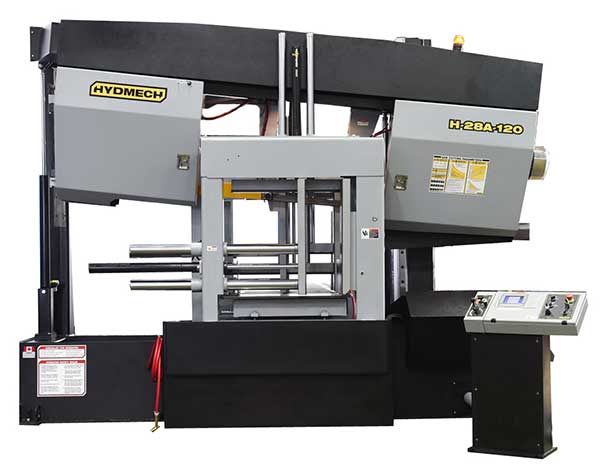

HYDMECH H-28A-120 – Automatic Long Bar Feed Horizontal Band Saw, New Machinery

HYDMECH H-28A-120 – Automatic Long Bar Feed Horizontal Band Saw

The H-28A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-28A-120 is fast, with its high speed shuttle feed indexing up to 120″ in a single movement with weight capacities up to 15,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

Hyd-Mechs direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 120″ bar feed, 24″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

HYDMECH H-32A – Automatic Horizontal Band Saw, New Machinery

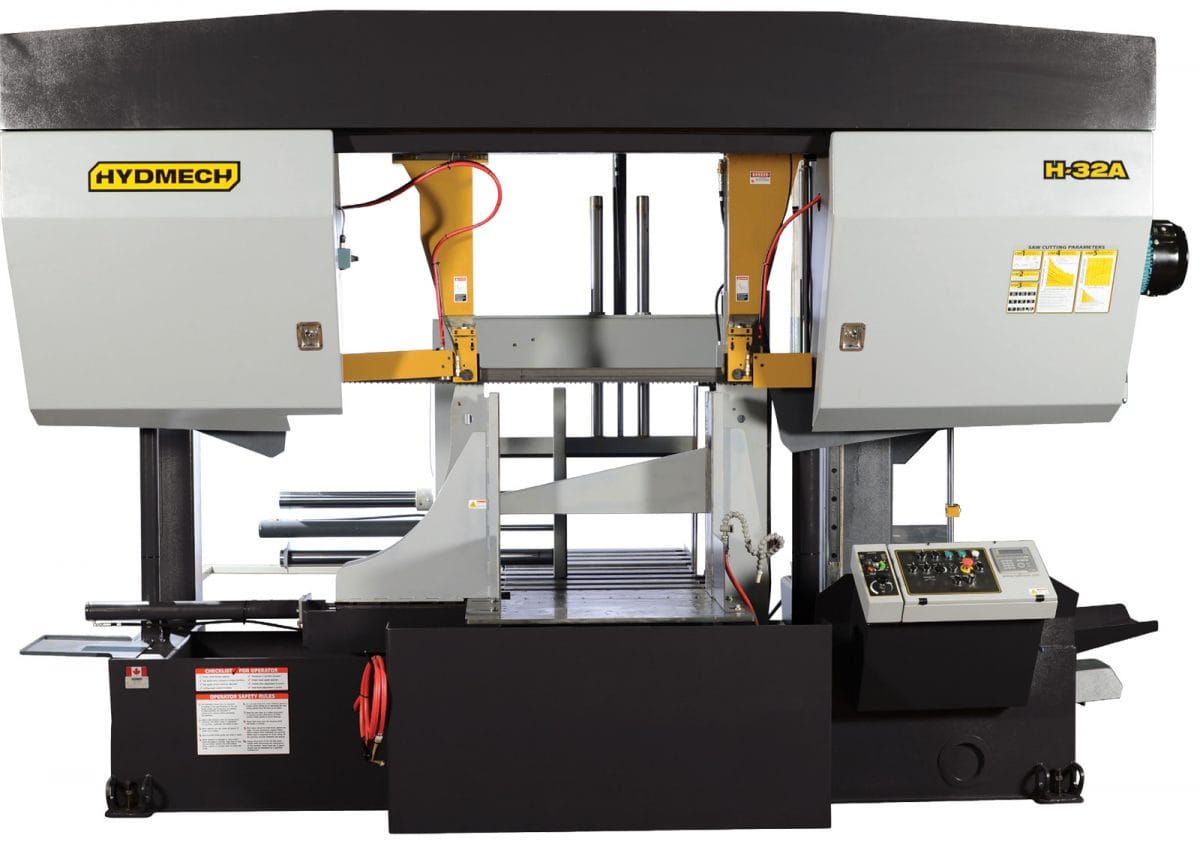

HYDMECH H-32A – Automatic Horizontal Band Saw

The H-32A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-32A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 32″ x 32″ capacity, 20 HP motor, and 2 5/8″ blade, the H-32A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

HYDMECH H-26/42 – Semi-Automatic Horizontal Band Saw, New Machinery

HYDMECH H-26/42 – Semi-Automatic Horizontal Band Saw

The H-26/42 is a semi-automatic horizontal band sawproviding accurate 90° metal cutting for heavy-duty applications.

Its 12° degree canted head allows for more efficient cutting and improved blade life. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 26″H x 42″W capacity, 20 HP motor, and 2 5/8″ blade, the H-26/42 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

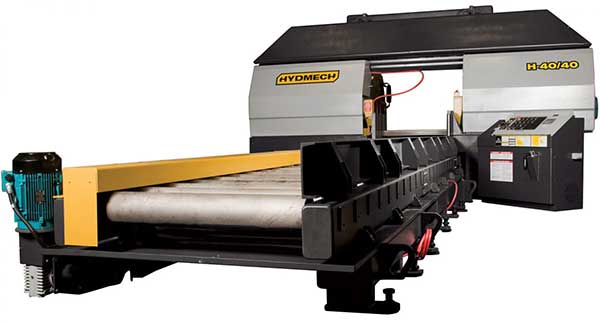

HYDMECH H-40/40 – Horizontal Band Saw, New Machinery

HYDMECH H-40/40 – Horizontal Band Saw

The H-40/40 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-40/40 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.

Featuring a 40″ x 40″ capacity, 20 HP motor, and 3″ blade, the H-40/40 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

HYDMECH H-40/60 – Horizontal Band Saw, New Machinery

HYDMECH H-40/60 – Horizontal Band Saw

The H-40/60 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-40/60 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.

Featuring a 40″H x 60″W capacity, 20 HP motor, and 3″ blade, the H-40/60 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

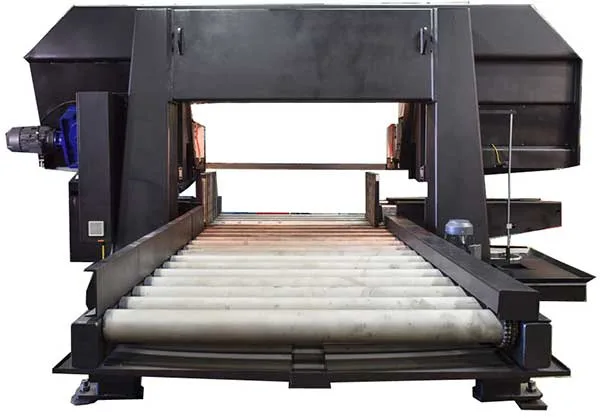

HYDMECH H-40/80 – Horizontal Band Saw, New Machinery

HYDMECH H-40/80 – Horizontal Band Saw

The H-40/80 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-40/80 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.

Featuring a 40″H x 80″W capacity, 20 HP motor, and 3″ blade, the H-40/80 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Contact Advanced Machinery Companies for Additional Information
