W.F. Wells Metal Cutting Bandsaws
All of our products are proudly made in the U.S.A. for Quality, Reliability, and Repairability.
W.F. Wells, Inc manufactures twin post, semi-automatic and CNC fully-automatic horizontal metal cutting bandsaws of the guillotine type. Models are available that will cut from 9 to 60 inch in diameter. W.F. Wells, Inc also manufactures hinge type horizontal bandsaws that will cut 7 to 10 inch diameter stock. A large variety of specialty saws for cutting unusual sizes and materials are also available. Parts are also available for W.F. Wells, Inc saws produced as far back as the 1940’s. Call or email W.F. Wells, Inc today and let us help you with your sawing, parts, or service requirements!
W.F. WELLS Hinge Type Saws
- Capacity: Rectangular at 90deg. 7″ High x 11″ Wide
- Rectangular at 45deg. 4″ High x 4¾” Wide
- Weight Capacity: 1,000 lbs
- Blade Speed: 55/90/145/180 SFPM
- Blade Size: ¾” x .035″ x 7’10”
- Sawing Feed: Variable, Hydraulic
Offering the Following Models:
W.F. Wells Model AC-7
W.F. Wells Model L-10
W.F. WELLS Semi Automatic Twin Post Saws
- Capacity: Rectangular at 90deg. 9″ High x 17″ Wide, Round at 90deg. 9″ Dia.
- Rectangular at 45deg. 9″ High X 8″ Wide, Round at 45deg. 8″ Dia.
- Weight Capacity: 2,000 lbs
- Blade Speed: 70-380 SFPM
- Blade Size: 1″ X .035″ X 11′-6″
- Sawing Feed: Variable, Hydraulic
- Blade Guide: Carbide with Backup Rollers
- Blade Tension: Manual
- Bandwheel Size: 14½”
Offering the Following Models:

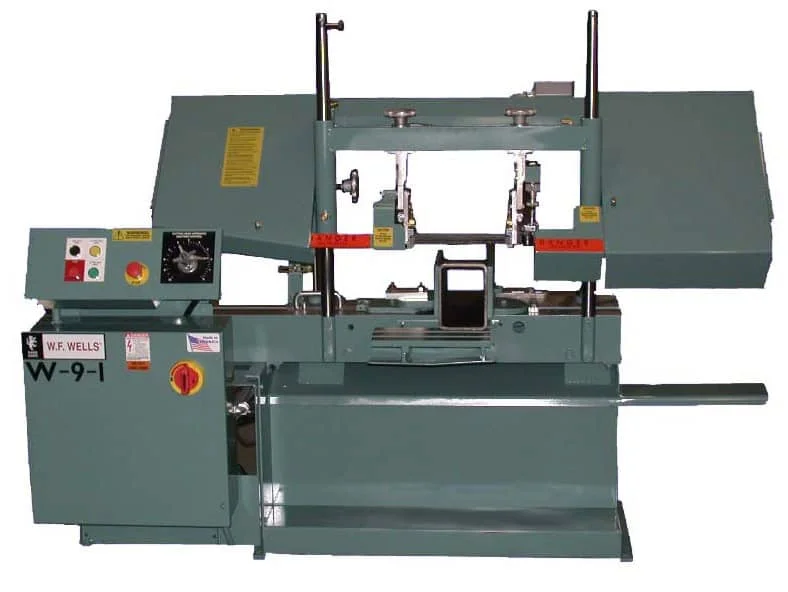

W.F. WELLS Model W-9-1
W.F. WELLS Model W-10-1
W.F. WELLS Model W-10-2
W.F. WELLS Model F-16-1
W.F. WELLS Model F-16-2
W.F. WELLS Model F-16-3
W.F. WELLS Model F-1630-1
W.F. WELLS Model F-1630-2
W.F. WELLS Model H-2024-1
W.F. WELLS Model H-2024-3
W.F. WELLS Model H-2024-3C (3° Cant)
W.F. WELLS Model H-1051-2GRS Grating/Panel
W.F. WELLS Large Capacity Semi Automatic Twin Column
- Capacity: Rectangular at 90° 25″ High X 40″ Wide , Round 25.5″
- Rectangular at 45° 25″ High X 24″ Wide
- Weight Capacity: 15,000 lbs
- Blade Speed: 60-500 SFPM
- Blade Size: 2⅝” X .063″ X 26′-6″
- Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
- Blade Tension: Hydraulic
- Bandwheel Size: 26″
- Vise: Hydraulic
- Blade Drive: 15 HP, AC Vector Drive
- Positive Sawing Force: 0-1,000 lbs
Offering the Following Models:
W.F. WELLS Model B-25-4
W.F. WELLS Model B-25-2C (6° Cant)
W.F. WELLS Model B-25-3C (6° Cant)
W.F. WELLS Model S-40-3
W.F. WELLS Model S-40-4
W.F. WELLS Model B-25-2
W.F. WELLS Model B-25-3
W.F. WELLS Model B-25-1
W.F. WELLS Model P-50-3
W.F. WELLS Model P-50-4
W.F. WELLS Model S-40-3C (6° Cant)
W.F. WELLS Miter Semi Automatic Twin Column
- Capacity: 16″ H X 26″ W @ 90°, 16″ H X 16″ W @ -45°
- Weight Capacity: 5,000 lbs
- Blade Speed: 60-500 SFPM
- Blade Size: 1¼” X .042″ X 16′ 8″
- Blade Guide: Rollers and Carbide Side Blocks
- Blade Tension: Hydraulic
- Bandwheel Size: 20″
- Vise: Hydraulic
- Blade Drive: 7½ HP, AC Vector Drive
- Sawing Force: 0-750 lbs
- Coolant Capacity: 15 Gallons
- Hydraulic Capacity: 20 Gallons
Offering the Following Models:
W.F. WELLS Model M-16-2
W.F. WELLS Model M-36-3
W.F. WELLS Model M-36SV-3
W.F. WELLS CNC Fully Automatic with Shuttle Type Barfeed
- Capacity: Rectangular at 90° 9″ High x 14″ Wide Round 9″ Diameter
- Weight Capacity: 3,000 lbs
- Blade Speed: 70-380 SFPM
- Blade Size: 1″ X .035″ X 11′ 6″
- Blade Guide: Roller Guides with Carbide Inserts
- Vise: Air, 8½” High
- Bandwheel Size: 14½”
- Blade Tension: Manual
- Blade Drive: 3 HP Variable Speed
- Sawing Force: 30-120 lbs
- Coolant Capacity: 15 Gallon
Offering the Following Models:
W.F. WELLS Model W-914A CNC
W.F. WELLS Model F-1620-A CNC
W.F. WELLS Model F-1620-HA CNC
W.F. WELLS Model F-16-1A CNC
W.F. WELLS Model H-2024HA-CNC
W.F. WELLS Model H-2024HAC-CNC (3° Cant)
W.F. WELLS Large Capacity CNC Fully Auto with Shuttle Type Barfeed
- Capacity: 25” High x 40” Wide, 25.5” Round
- Weight Capacity: 14,000 lbs
- Blade Speed: 60-500 SFPM
- Blade Size: 2″ X .063″ X 26′-6″, 2⅝ optional
- Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Back-up
- Blade Tension: Hydraulic
- Bandwheel Size: 26”
- Vise: Hydraulic
- Blade Drive: 15 HP, AC Vector Drive
- Sawing Force: 0-1,000 lbs
- Coolant Capacity: 15 Gallons
- Hydraulic Capacity: 20 Gallons
Offering the Following Models:
W.F. WELLS Model B-25-3A3-CNC
W.F. WELLS Model B-25-2A3 CNC
W.F. WELLS Model B-25-2CA3 CNC (6° Cant)
W.F. WELLS Model B-25-3CA3 CNC (6° Cant)
W.F. WELLS Model S-40-3A3 CNC
W.F. WELLS Model S-40-3CA3 CNC (6° Cant)
W.F. WELLS Trim and Vertical Saws
- Capacity: Rectangular at 90° 60″ High X 60″ Wide
- Length of Cut: 25″
- Weight Capacity: 20,000 lbs
- Blade Speed: 75-500 SFPM
- Blade Size: 2″ X .063″ X 26′-6″
- Blade Guide: Carbide Blocks with Roller Backup
- Blade Tension: Hydraulic Order
- Bandwheel Size: 26″
- Vise: None
- Blade Drive: 15 HP, 3ph, AC Vector Drive
- Positive Sawing Force: 0-1000 lbs
- Coolant Capacity: 20 Gallons
- Hydraulic Capacity: 20 Gallons
Offering the Following Models:
W.F. WELLS Model X-6025-4
W.F. WELLS Model X-6025-2
W.F. WELLS Model X-SPECIAL
W.F. WELLS Model VCO 2530 NT
W.F. WELLS Model EVM-2030-6
W.F. WELLS Special Application Saws
- Capacity 40” High x 40” Wide x 35” Length
- Weight Capacity 10,000 lbs
- Blade Speed 330-2000 SFPM
- Blade Size 1¼“ X .040” X 25’ (35-40 Grit)
- Blade Guide High Speed Rollers
- Blade Tension Automatic Preset, Hydraulic
- Vise Vertical Holddown
- Blade Drive 10 HP, AC Vector Drive
- Sawing Force Ball Screw Positive Downfeed
- Coolant Capacity 20 Gallons
- Hydraulic Capacity 20 Gallons
Offering the Following Models:
W.F. WELLS Model X-SPECIAL
W.F. WELLS Model VCO 2530 NT
W.F. WELLS Model B-2575-3
W.F. WELLS Model H-1051-2GRS Grating/Panel
