PIRANHA Fiber LASER Metal Cutting Machines

CNC Fiber LASER Metal Cutting Machines

Piranha and Whitney’s CNC fiber LASER metal cutting machines incorporate unique technology that significantly reduces operational costs while enhancing production speed. These advanced machines are engineered to provide precise and efficient cutting of metal materials, making them ideal for various industrial applications. With their high performance and cost-effectiveness, Piranha and Whitney’s fiber LASER cutters stand out in the market.

Piranha SP510 Fiber LASER | CNC Fiber LASER Metal Cutting Machines

Piranha SP510 Fiber LASER

NEW! Single Pallet Fiber LASER:
This new single pallet design reduces floor space and increases efficiency while being budget-friendly!

SP510 Fiber LASER System Includes:

  • Single Pallet for Reduced Floor Space
  • 60″ X 120.25″ cutting area
  • 3.0kW fiber resonator
  • Chiller
  • Helical rack and pinion positioning system
  • 3,150 IPM (80 m/min) maximum travel rate per axis
  • Windows 10 CNC control with Cypcut
  • Red diode LASER pointer
  • Automatic Lubrication System with timer
  • Automatic Cutting Gas Control and proportional valve
  • Segmented Downdraft Dust Removal System with Blower
Product Specifications
Piranha E Series Fiber LASER: 5×10 | CNC Fiber LASER Metal Cutting Machines

Piranha E Series Fiber LASER: 5×10

5’x10′ E Series Fiber LASER
System Includes:

  • 60.25″ X 120.25″ cutting area
  • Fiber Resonator (1 kW Standard, 2 kW or 3 kW Optional)
  • Chiller
  • Helical rack and pinion positioning system
  • 3,150 IPM (80 m/min) maximum travel rate per axis
  • Windows 10 CNC control with Cypcut
  • Red diode laser pointer
  • Automatic Lubrication System with timer
  • Automatic Cutting Gas Control and proportional valve
Product Specifications
Piranha Flex LASER Fiber LASER Cutting Machines | PIRANHA Fiber LASER Metal Cutting Machines

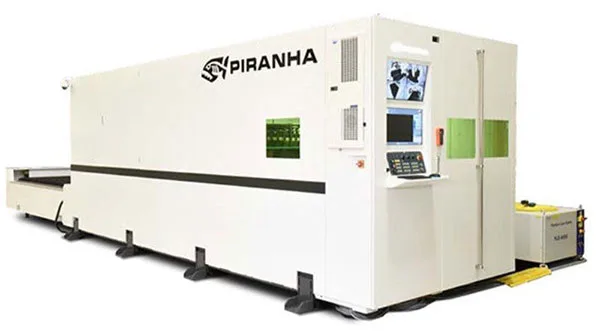

Piranha Flex LASER Fiber LASER Cutting Machines

Piranha FLEX fiber LASER cutting machines use proven technology to ensure precision and reliability throughout their service life.

System Includes:

  • Cutting areas from 5’x 10’ to 8’ x 20’
  • Solid-state fiber power supply LASER resonators from 3kW to 20kW with an auto-focus cutting head appropriate for the selected power level
  • Chiller
  • Helical rack and pinion positioning system with automatic lubrication
  • 3,150 IPM (80 m/min) or 3,937 (100 m/min) maximum travel rate per axis
  • Cypcut or Hypcut graphic CNC control
  • Red diode LASER pointer
  • Automatic Cutting Gas Control and proportional valve
  • Nozzle cleaner
  • ProNEST® LT UNLIMITED programming software
    Product Specifications
    Piranha Plate LASER 1530: 4, 6, and 12 kW Fiber LASER | PIRANHA Fiber LASER Metal Cutting Machines

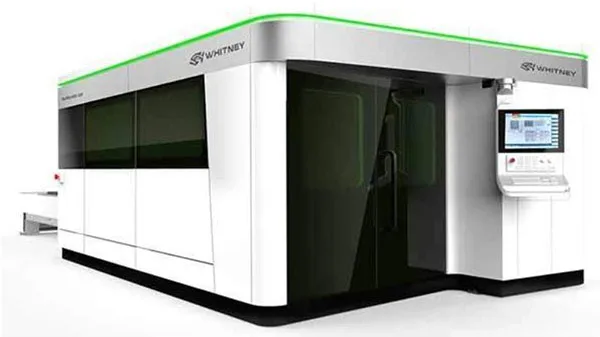

    Piranha PlateLASER 1530: 4, 6, and 12 kW Fiber LASER

    Piranha P-series PlateLASER is built for performance and productivity with a polymer granite base, linear drives, carbon fiber bridge, and a state-of-the-art CNC control. With power ranges from 4 to 12kW and high acceleration speeds, these machines offer some of the fastest cycle times in the world.



    Because of the many options and application-specific variables for the PlateLASER, we want to discuss your requirements to help determine the machine to best meet your needs.

    Please submit this machine in your quote request or call to further discuss your needs.

      Product Specifications
